Hontim Spark Machine

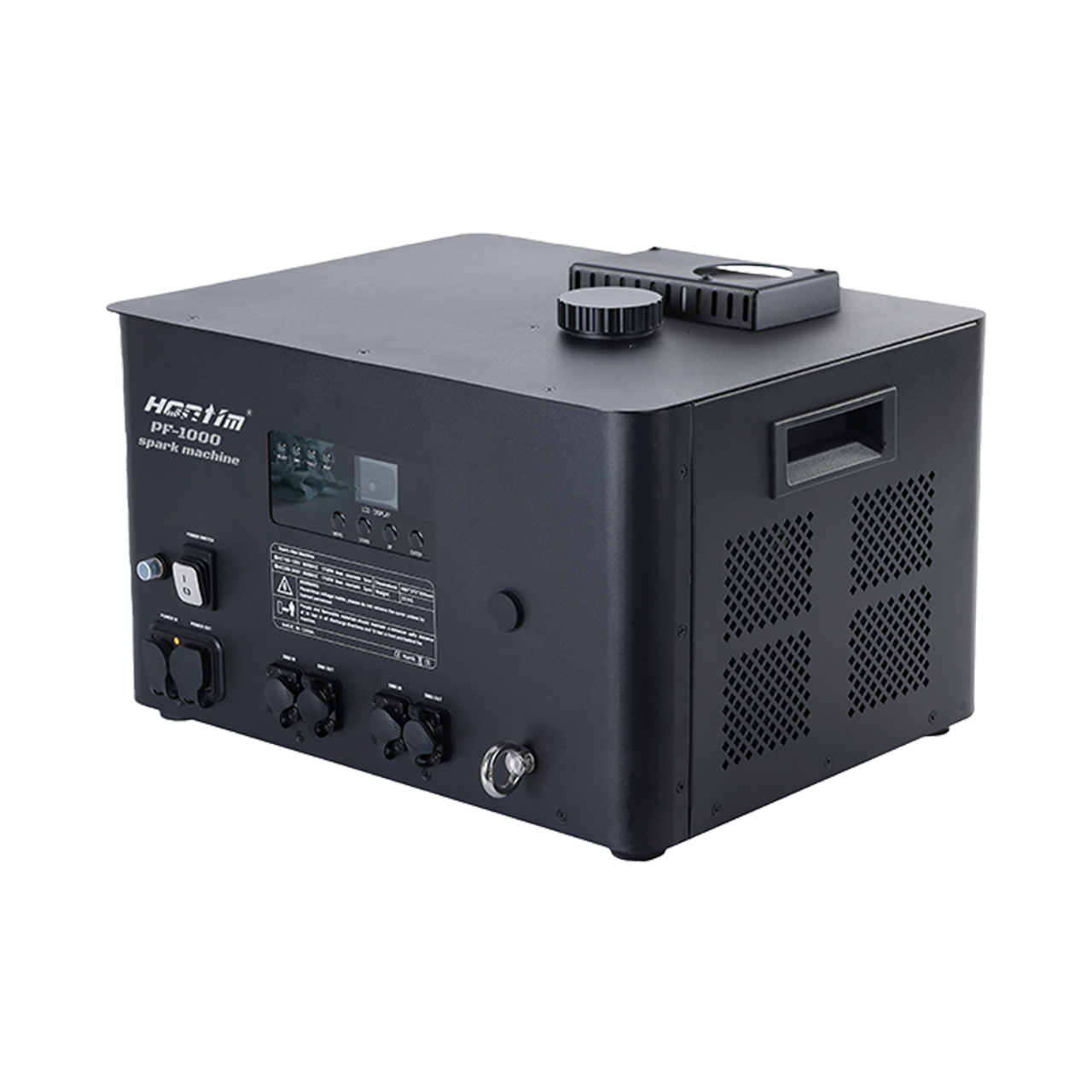

PF-1000 Waterproof high Spark machine

Model: PF-1000

220V
Voltage
2000W
Power
28.3kg
Weight
dmx512
DMX Control

Product Description

Waterproof High Spark Machine — Powerful Vertical Spray, Outdoor Rain‑Proof Performance

Engineered for outdoor events, festival shows, live stages and large‑scale performances, this waterproof high spark machine adopts electromagnetic heating and independent drive motor design. Built‑in rain‑proof structure and stainless‑steel housing deliver stable spark effect for outdoor and indoor stage applications.

Key Features

Powerful 2000W Total Power – Delivers strong vertical upward spark output for brilliant stage visual effects.
Adjustable Spark Height – Spraying height ranges from 5‑10 meters with 5 control levels for flexible effect switching.
38mm Spraying Inner Diameter – Optimized nozzle structure for smooth and stable spark ejection.
Efficient Electromagnetic Heating – Fast heating within 3‑5 minutes for quick show preparation.
DMX512 Professional Control – Standard DMX512 control mode for seamless integration with stage lighting systems.
Durable Stainless‑Steel Shell – Robust stainless‑steel housing for long‑term service life and corrosion resistance.
Triple Independent AC Motors – Equipped with 3 independent large AC motors with automatic material clearing function to avoid material blockage.
500g Material Box Capacity – Large‑capacity material box, requires dedicated spark consumables.
IPX4 Waterproof Rating – Outdoor rain‑proof performance; the machine shall not be submerged in water.
Complete Standard Accessories – Supplied with 3‑meter waterproof power cord, 3‑meter waterproof signal cable and material clamping wrench.

Technical Parameters

Spraying Direction
Vertical Upward
Spraying Height
5-10 meters (5 control levels)
Spraying Inner Diameter
38mm
Heating Method
Electromagnetic Heating (3-5 minutes)
Shell Material
Stainless Steel
Motor Configuration
3 Motors (Independent Large AC Motors, Automatic Material Clearing)
Material Box Capacity
500g (Requires dedicated consumables)
Waterproof Rating
IPX4 (Outdoor rainproof, machine must not be submerged in water)
Accessories
3-meter waterproof power cord, 3-meter waterproof signal cable, material clamping wrench

Quick Specifications

Brand Hontim
Model PF-1000
Dimensions 600*505*425mm
Voltage 220V
Power 2000W
