Hontim Spark Machine

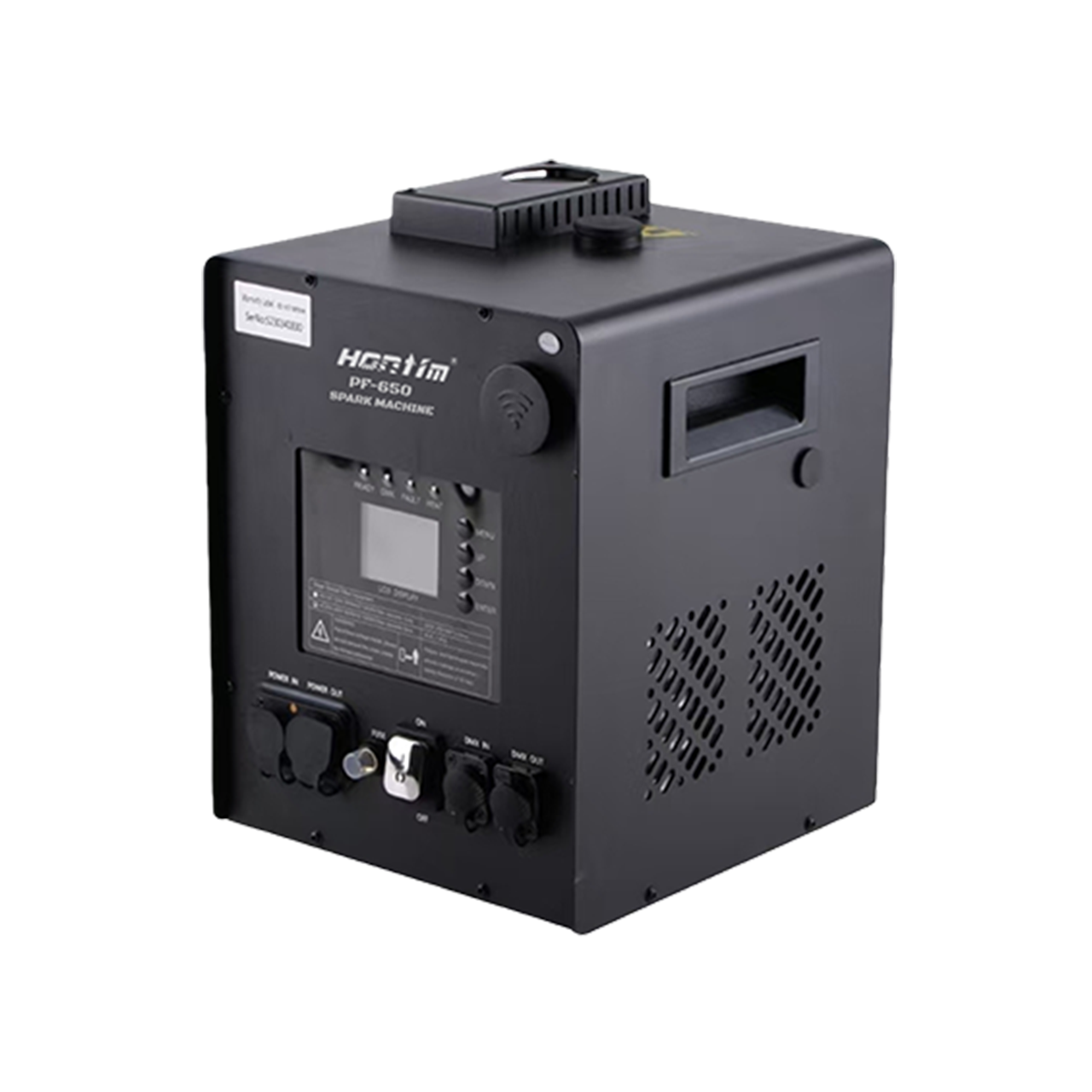

PF-650 Water-proof Spark machine

Model: PF-650

220V
Voltage
1000W
Power
11kg
Weight
dmx512
DMX Control

Product Description

Water‑proof Spark Machine — Vertical Upward Spark Output, Outdoor Rain‑Proof Capability

Engineered for outdoor festivals, live events, wedding shows and indoor stage performances, this waterproof spark machine delivers stable vertical upward spark effects. Built with IPX4 rain‑proof structure and aluminum housing, it supports both DMX512 and wireless remote control, bringing reliable spark visual effects for various indoor and outdoor activities.

Key Features

1000W Total Power – Delivers steady and powerful spark output for outstanding stage visual presentation.
Vertical Upward Spray – Fixed vertical upward spraying direction for neat and concentrated spark effects.
Adjustable Spraying Height – Spraying height ranges from 2‑6 meters; 5‑level adjustment via control panel, 3‑level adjustment via remote control.
24mm Nozzle Inner Diameter – Optimized nozzle inner diameter ensures smooth and consistent spark ejection.
Efficient Electromagnetic Heating – Heating completes within 3‑5 minutes for fast pre‑show preparation.
Dual‑Mode Control – Supports DMX512 and wireless remote control for flexible on‑site operation.
Durable Aluminum Shell – High‑strength aluminum shell for reliable structural performance.
IPX4 Waterproof Rating – Outdoor rainproof performance; water ingress into the machine is prohibited.
Triple Independent AC Motors – Equipped with 3 independent large AC motors with automatic material clearing function to prevent material blockage.
250g Material Box Capacity – 250g material box for dedicated spark consumables.
Complete Standard Accessories – Supplied with 3‑meter 1.5mm power cord, 3‑meter signal cable, 2.4G wireless remote control and material clamping wrench.

Technical Parameters

Spraying Direction
Vertical upward spray
Spraying Height
2-6 meters (5 levels on the control panel, 3 levels on the remote control)
Nozzle Inner Diameter
24mm
Heating Method
Electromagnetic heating (3-5 minutes)
Shell Material
Aluminum
Waterproof Rating
IPX4 (Outdoor rainproof, water ingress is not allowed)
Motor Configuration
3 motors (independent large AC motors, automatic material clearing)
Material Box Capacity
250g
Accessories
3-meter 1.5mm power cord, 3-meter signal cable, 2.4G wireless remote control, material clamping wrench

Quick Specifications

Brand Hontim
Model PF-650
Dimensions 350*320*415mm
Voltage 220V
Power 1000W

Compatible Consumables
