Hontim Spark Machine

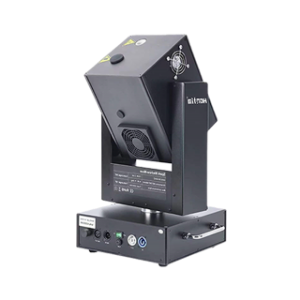

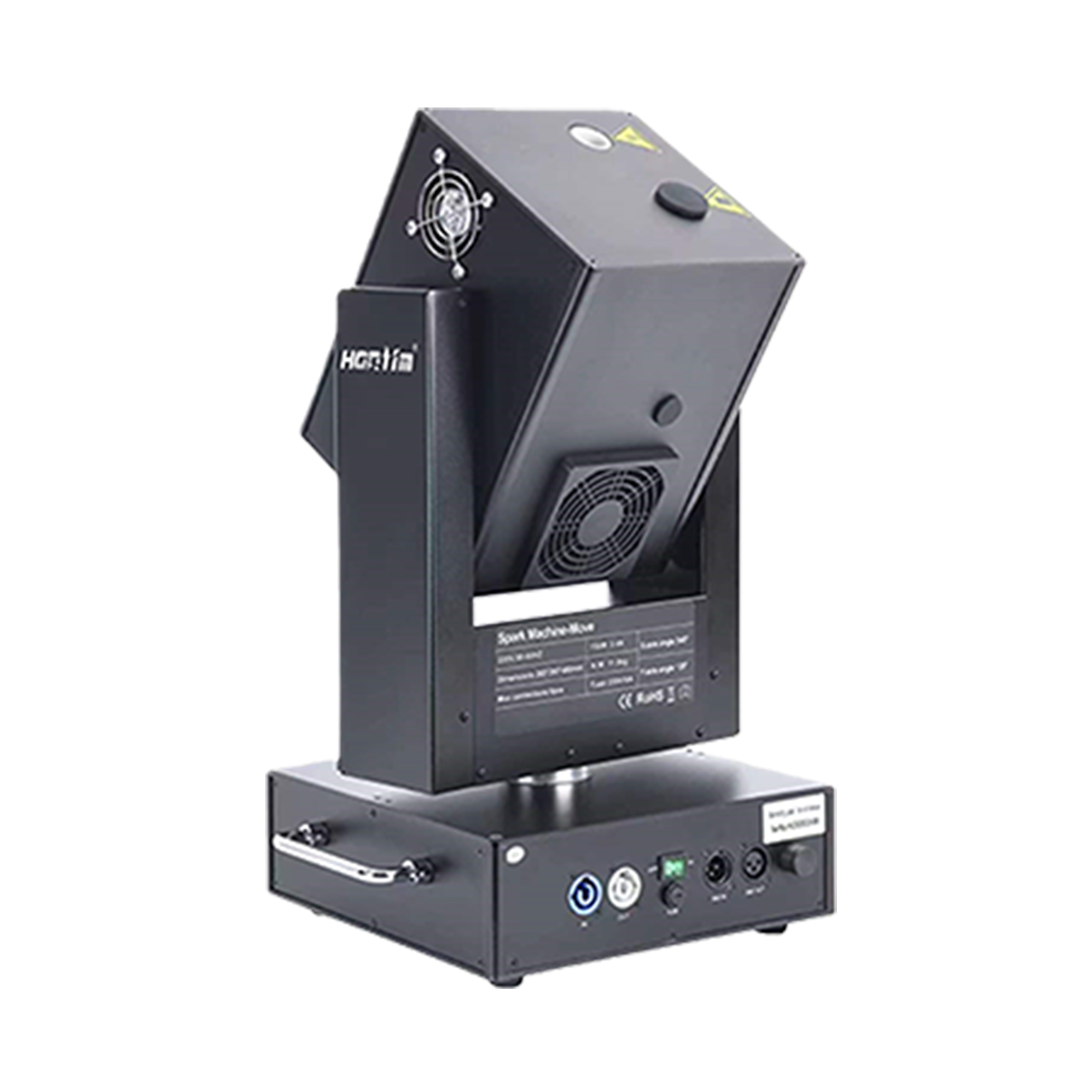

PF-700 Headmoving Spark Machine(Single-head)

Model: PF-700

220V
Voltage
748W
Power
15kg
Weight
dmx512
DMX Control

Product Description

Headmoving Spark Machine(Single‑head) — Flexible Rotary Spark Projection, Dual‑Mode Control

Engineered for concerts, wedding ceremonies, bar venues and indoor live stage events, this single‑head moving spark machine delivers dynamic multi‑angle spark effects. With X‑axis 360° endless rotation and Y‑axis ±30° tilt, electromagnetic heating and dual control solutions, it creates flexible and diverse visual atmospheres for stage performances.

Key Features

Compact 750W Total Power – Provides stable spark output for vivid stage visual effects.
Multi‑Axis Rotary Spraying – X‑axis 360° continuous rotation, Y‑axis ±30° tilt for multi‑angle spark projection.
Adjustable Spraying Height – Spraying height ranges from 1‑5 meters; 5‑level adjustment via control panel, 3‑level adjustment via remote control.
22mm Nozzle Inner Diameter – Optimized nozzle size ensures smooth and consistent spark ejection.
Efficient Electromagnetic Heating – Heating finishes within 3‑5 minutes for quick pre‑show preparation.
Dual Control Options – Supports DMX512 and wireless remote control for convenient on‑site operation.
Lightweight Aluminum Shell – Aluminum housing balances structural strength and lightweight performance.
Triple Independent AC Motors – Equipped with 3 independent large AC motors with automatic material clearing function to avoid material blockage.
260g Material Box Capacity – 260g capacity material box for dedicated spark consumables.
Complete Standard Accessories – Supplied with 3‑meter 1.5mm power cord, 3‑meter signal cable, 2.4G multi‑function remote control and hex wrench for material clamping.

Technical Parameters

Spraying Direction
Rotary (X-axis 360°, Y-axis ±30°)
Spraying Height
1-5 meters (5 levels on the control panel, 3 levels on the remote control)
Nozzle Inner Diameter
22mm
Heating Method
Electromagnetic heating (3-5 minutes)
Shell Material
Aluminum
Motor Configuration
3 motors (independent large AC motors, with automatic material clearing)
Material Box Capacity
260g
Accessories
3-meter 1.5mm power cord, 3-meter signal cable, 2.4G multi-function remote control, hex wrench for material clamping

Quick Specifications

Brand Hontim
Model PF-700
Dimensions 350*320*415 mm
Voltage 220V
Power 748W

Compatible Consumables
