Home / Machines / Water-base Haze
Hontim Water-base Haze

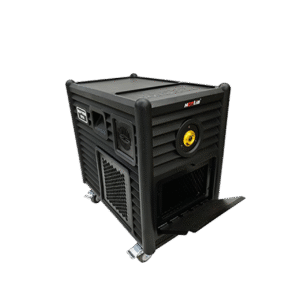

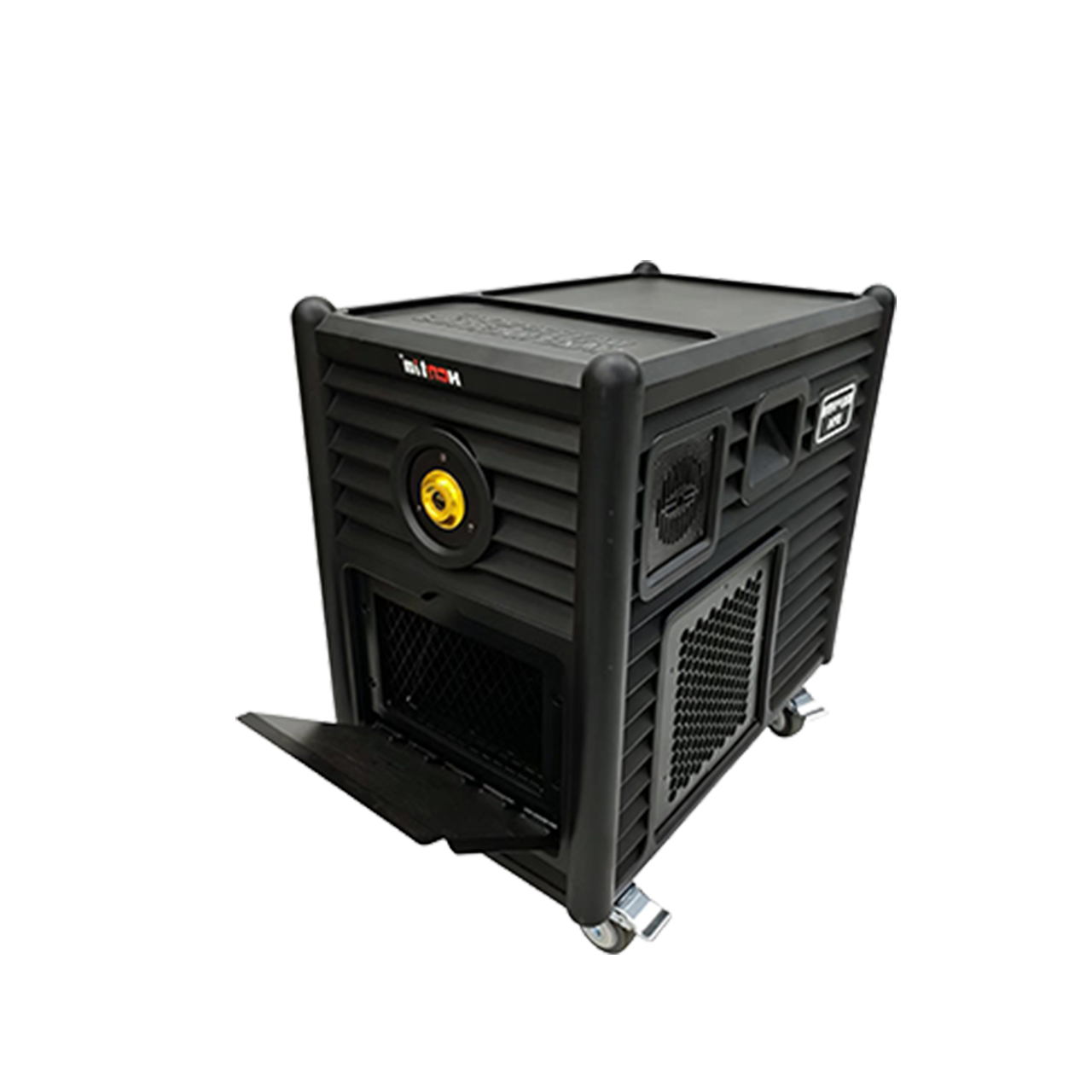

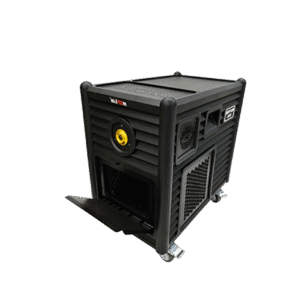

FC-2.1 Outdoor Waterproof High-power Haze machine

Model: FC-2.1

220V
Voltage
3500W
Power
51.5kg
Weight
dmx512
DMX Control

Product Description

Professional Outdoor Fog Machine — Maximum Output, All-Weather Reliability

Engineered for large-scale outdoor shows, festivals, and stage productions, this heavy-duty fog machine delivers exceptional performance with rugged, weatherproof construction.

Key Features

Massive Coverage – Produces up to 3,000 m³/min of smoke with a push distance of 20–30 meters, filling large stages and open-air venues quickly and evenly.
Powerful 3500W System – Preheats in just 10 minutes for fast, consistent operation.
Flexible Control – DMX512, manual, remote control, and timed/metered modes across 3 channels for seamless integration into any show setup.
Precision Adjustment – Mist volume and wind force both adjustable from 0–100%, with a mechanically adjustable fan angle of 0–90°.
Intuitive Interface – Full-color LCD touchscreen for effortless control and monitoring.
Built for the Outdoors – IP55 protection rating and durable aluminum frame, designed to withstand demanding outdoor conditions.
Extended Runtime – 2.5L tank, compatible with VG Series outdoor water-based **haze liquid.

Technical Parameters

Current Limiting Fuse:
220V/10A
Preheating Time:
10 minutes
Smoke Output:
3000 cubic meters/minute
Smoke Push Distance:
20-30 meters
Control Mode:
DMX512/Manual/Remote Control/Timed and Metered Control
Channels:
3CH
Oil Tank Capacity:
2.5L
Fan Angle:
0-90 degrees Mechanically Adjustable
Mist Volume:
0-100% Linear Adjustment
Wind Force:
0-100% Linear Adjustment
Operating Interface:
LCD Full-Color Touchscreen Display
Protection Rating:
IP44
Compatible Consumables:
VG Series Outdoor Water-Based Hazer Liquid

Quick Specifications

Brand Hontim
Model FC-2.1
Dimensions 690*445*690mm
Voltage 220V
Power 3500W
