Hontim Water-base Haze

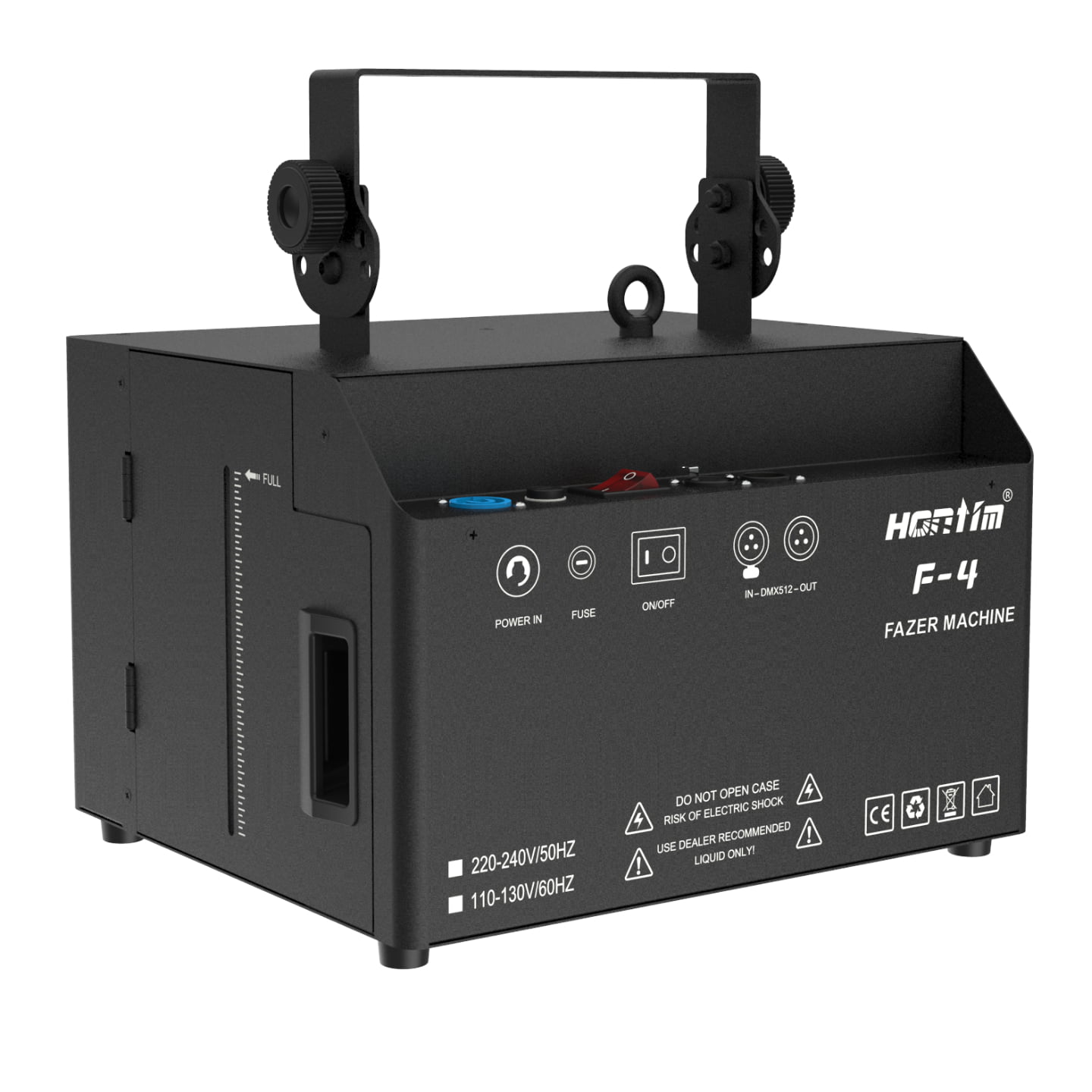

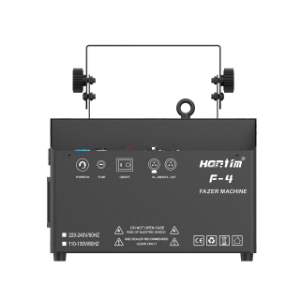

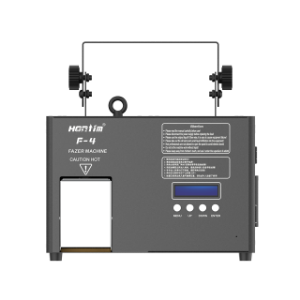

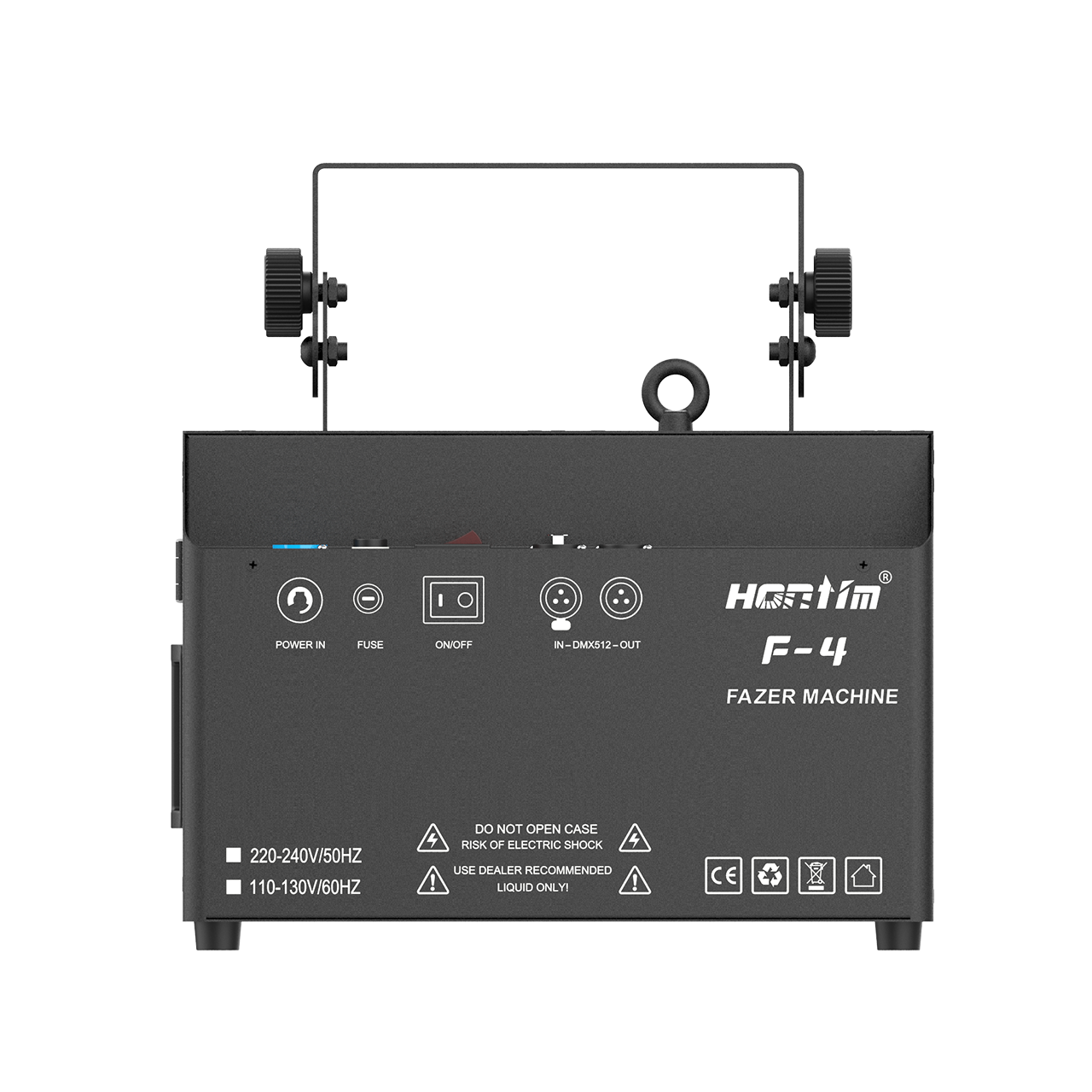

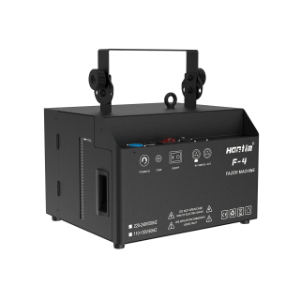

F-4 Haze Machine (water-base)

Model: F-4

220V
Voltage
1000W
Power
8.7kg
Weight
dmx512
DMX Control

Product Description

1000W Haze Machine (Water-base)

Ideal for small stages, bars, KTV, private parties, exhibitions and fixed-installation venues. This compact and efficient water-based haze machine delivers soft, clean and long-lasting atmospheric effects with fast preheating, precise control and safe, quiet operation.

Key Features

Fast Warm-Up & Efficient – 1000W power with preheating time <4 minutes, ready quickly for continuous haze output. Delicate & Clean Haze – Produces 300 m³/min fine light mist with low 70ml/min oil consumption, non-irritating, residue-free and stage-friendly. Full Control System – Supports DMX512, manual, remote control, timed & metered control (2CH) for flexible scene matching. Precision Linear Adjustment – Mist volume & wind power 0–100% linear adjustable; fan angle mechanically adjustable 0–90°. Intuitive LCD Operation – LCD touch display for clear status reading and simple parameter setting. Multiple Safety Protection – Electronic temperature protection + 220V/5A current limiting fuse for safe and stable daily use. Large 5L Oil Tank – Long runtime, compatible with VL Series Water-Based Light Mist Oil. Lightweight & Portable – Compact body, easy to move, install and store.

Technical Parameters

Current Limiting Fuse:
220V/5A
Preheating Time:
<4 minutes
Oil Consumption:
70ML/min
Smoke Output:
300 cubic meters/min
Control Mode:
DMX512/Manual/Remote Control/Timed and Metered Control
Channels:
2CH
Oil Tank Capacity:
5L
Fan Angle:
0-90 degrees Mechanically Adjustable
Fog Volume:
0-100% Linear Adjustment
Fan:
0-100% Linear Adjustment
Operating Interface:
LCD Touch Display
Electronic Temperature Protection:
Supported
Compatible Consumables:
VL Series Water-Based Light Fog Juice

Quick Specifications

Brand Hontim
Model F-4
Dimensions 420*375*355mm
Voltage 220V
Power 1000W
