Hontim Water-base Haze

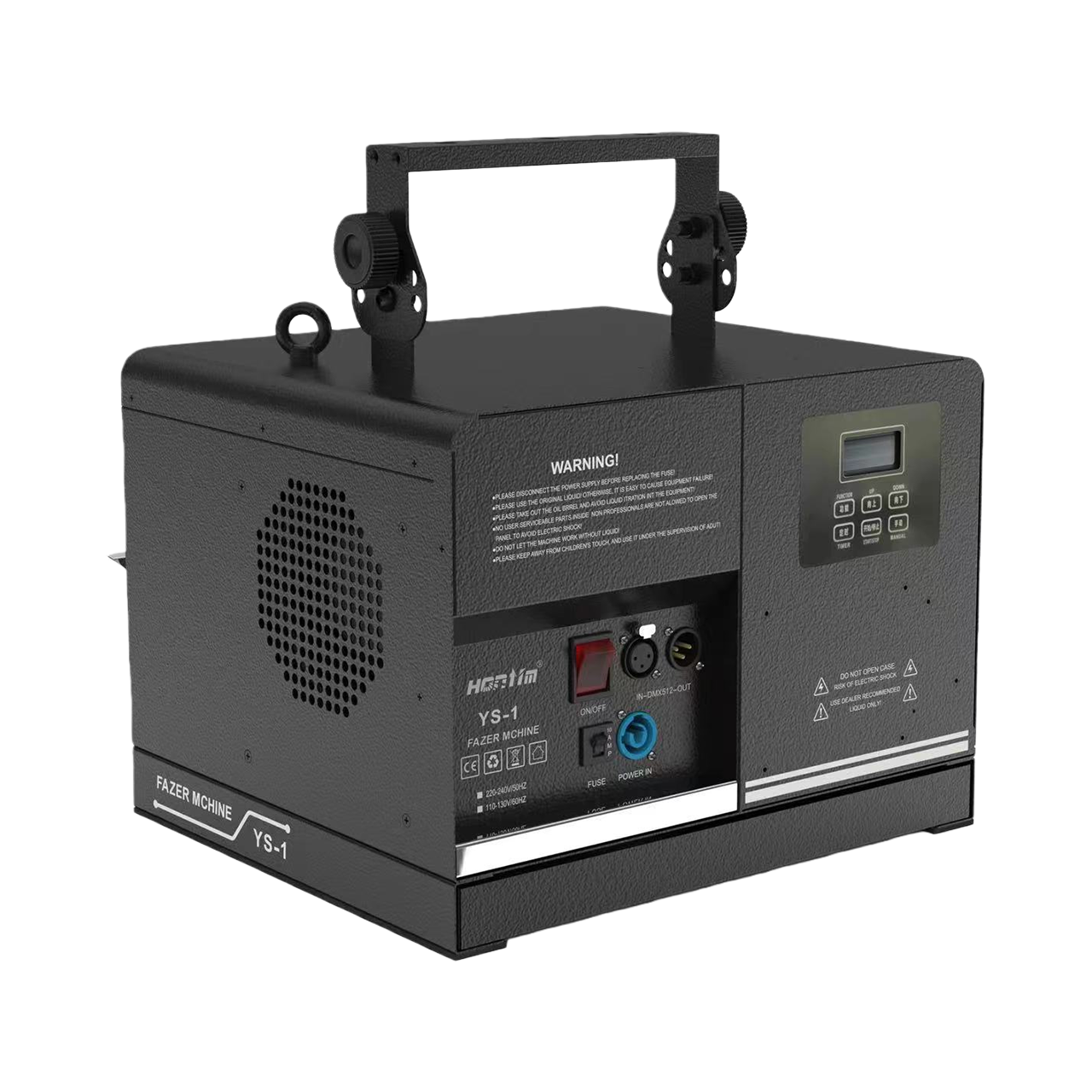

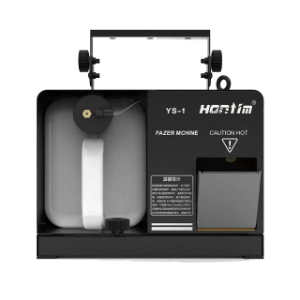

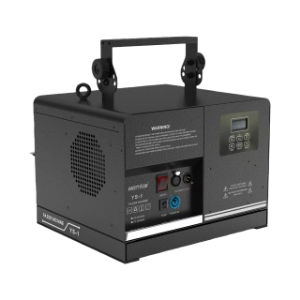

YS-1 Haze Machine (Water-base)

Model: YS-1

220V
Voltage
1500W
Power
11.2kg
Weight
dmx512
DMX Control

Product Description

Haze Machine (Water-base) — Professional Stage Atmosphere, Stable & Eco‑Friendly

Designed for stages, weddings, bars, exhibitions and fixed‑installation events, this water‑based haze machine delivers fine, long‑lasting haze with fast warm‑up, precise control and safe, clean operation.

Key Features

Steady Atmosphere Output – Delivers 300 cubic meters/min of gentle haze, ideal for enhancing light beams and creating soft stage ambiance.
Powerful 1500W System – Preheats in less than 4 minutes for quick, reliable and consistent performance.
Flexible Control – DMX512, manual, remote control, and timed/metered modes across 2 channels for seamless integration into any show setup.
Precision Adjustment – Mist volume and wind power both adjustable from 0–100% linear, with a mechanically adjustable fan angle of 0–90°.
Intuitive Interface – LCD touch display for clear monitoring and easy parameter setting.
Smart Safety Protection – Built‑in electronic temperature protection and 220V/6A current limiting fuse for safe daily use.
Long Runtime – 5L large‑capacity tank, compatible with VL Series water‑based light mist oil for extended continuous use.
Compact & Portable – Lightweight body with standard cardboard box packaging, easy to transport, install and store.

Technical Parameters

Current Limiting Fuse
220V/6A
Preheating Time
<4 minutes
Oil Consumption
80ML/min
Smoke Output
300 cubic meters/min
Channels
2CH
Oil Tank Capacity
5L
Fan Angle
0-90 degrees Mechanically Adjustable
Mist Volume
0-100% Linear Adjustment
Wind Power
0-100% Linear Adjustment
Operating Interface
LCD Touch Display
Electronic Temperature Protection
Supported
Packaging
Cardboard Box
Compatible Consumables
VL Series Water-Based Light Mist Oil

Quick Specifications

Brand Hontim
Model YS-1
Dimensions 470*415*385mm
Voltage 220V
Power 1500W
