Hontim Oil-base Haze

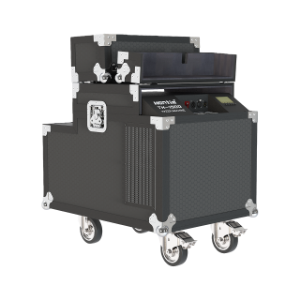

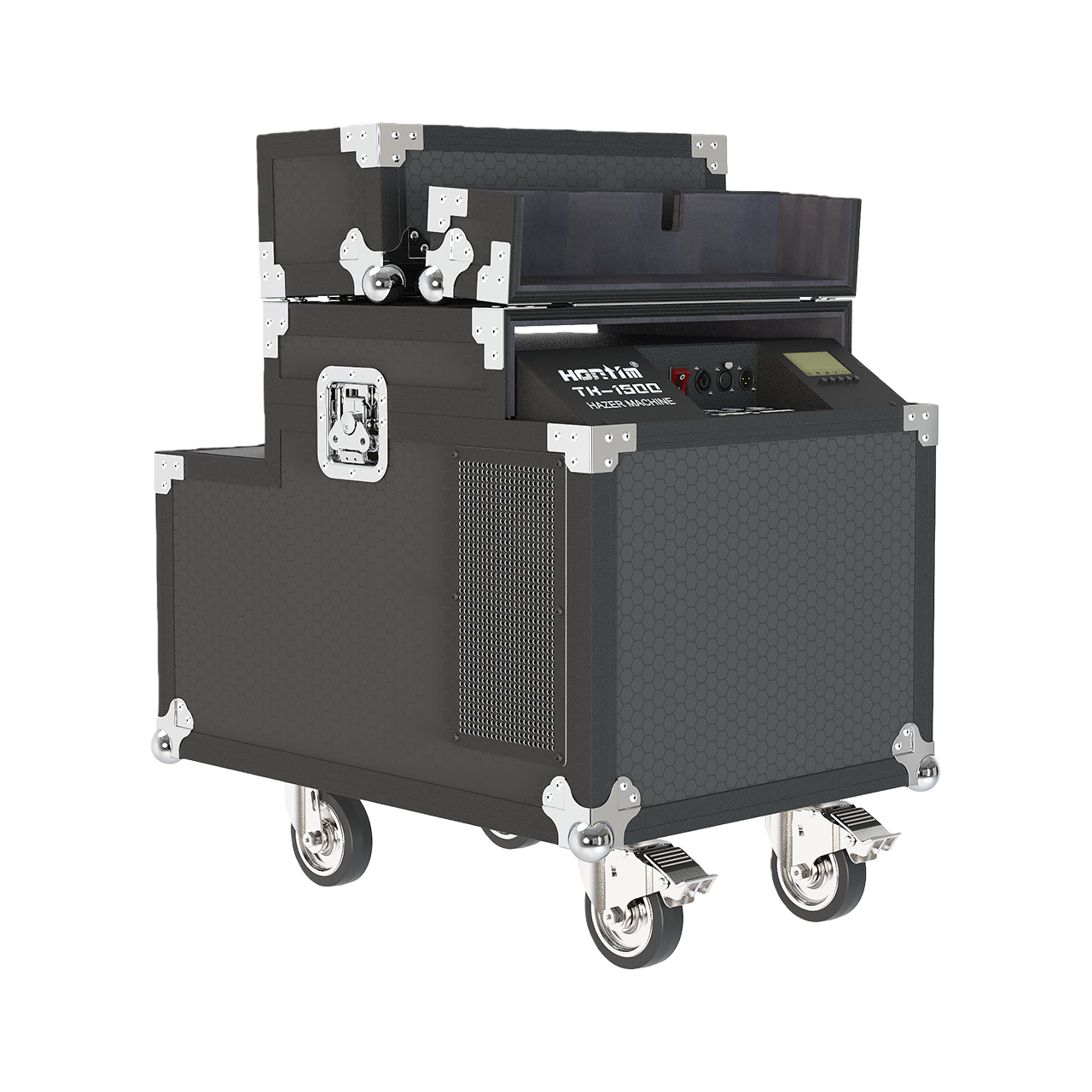

TK-1500 High power Haze Machine (Oil-base)

Model: TK-1500

220V
Voltage
2000W
Power
61.8kg
Weight
dmx512
DMX Control

Product Description

High power Haze Machine (Oil‑base) — Zero Pre‑Heat, Heavy‑Duty Oil‑Based Stage Hazer

Engineered for large theatres, concert halls, touring shows and fixed‑install performance venues, this heavy‑duty oil‑based haze machine delivers consistent ultra‑fine haze output with built‑in compressor system. No preheating required, ready for instant atmospheric effects for long‑duration stage productions.

Key Features

Instant Haze Output – No preheating required, delivers 580 cubic meters/minute stable fine haze for highlighting light beams and large‑space atmosphere creation.
Split‑Type Powerful System – Total 2000W power (1500W compressor + 450W fan), provides strong and steady atomization performance.
Flexible Control – DMX512, wireless remote control, manual operation with 2‑channel design; timer control supported for automated show workflows.
Multi‑Dimension Precision Adjustment – Mist volume with 10‑level adjustment; wind power 0%‑100% adjustable; fan angle mechanically adjustable from 0‑90 degrees.
Intuitive Full‑Touch Interface – Full‑touch LCD screen for convenient parameter setup and real‑time status monitoring.
Dual Oil‑Tank Design – 2.5L + 2.5L dual oil tank capacity, compatible with HZL series oil‑based mist oil, achieves ultra‑low consumption: 540 minutes/L under 100% output.
Safe & Professional Packaging – Equipped with 220V/10A current limiting fuse; supplied in heavy‑duty flight case for secure transportation for rental and touring applications.

Technical Parameters

Compressor
1500W
Fan
450W
Current Limiting Fuse
220V/10A
Preheating Time
No preheating required
Oil Consumption
540 minutes/L (100%)
Smoke Output
580 cubic meters/minute
Channels
Channels
Oil Tank Capacity
2.5L + 2.5L
Fan Angle
0-90 degrees mechanically adjustable
Mist Volume
10 levels adjustable
Wind Power
0%-100% adjustable
Operating Interface
Full-touch LCD screen
Timer Control
Supported
Packaging
Flight case
Compatible Consumables
HZL series oil-based mist oil

Quick Specifications

Brand Hontim
Model TK-1500
Dimensions 670*485*590mm
Voltage 220V
Power 2000W
