Home / Machines / Flame Machine

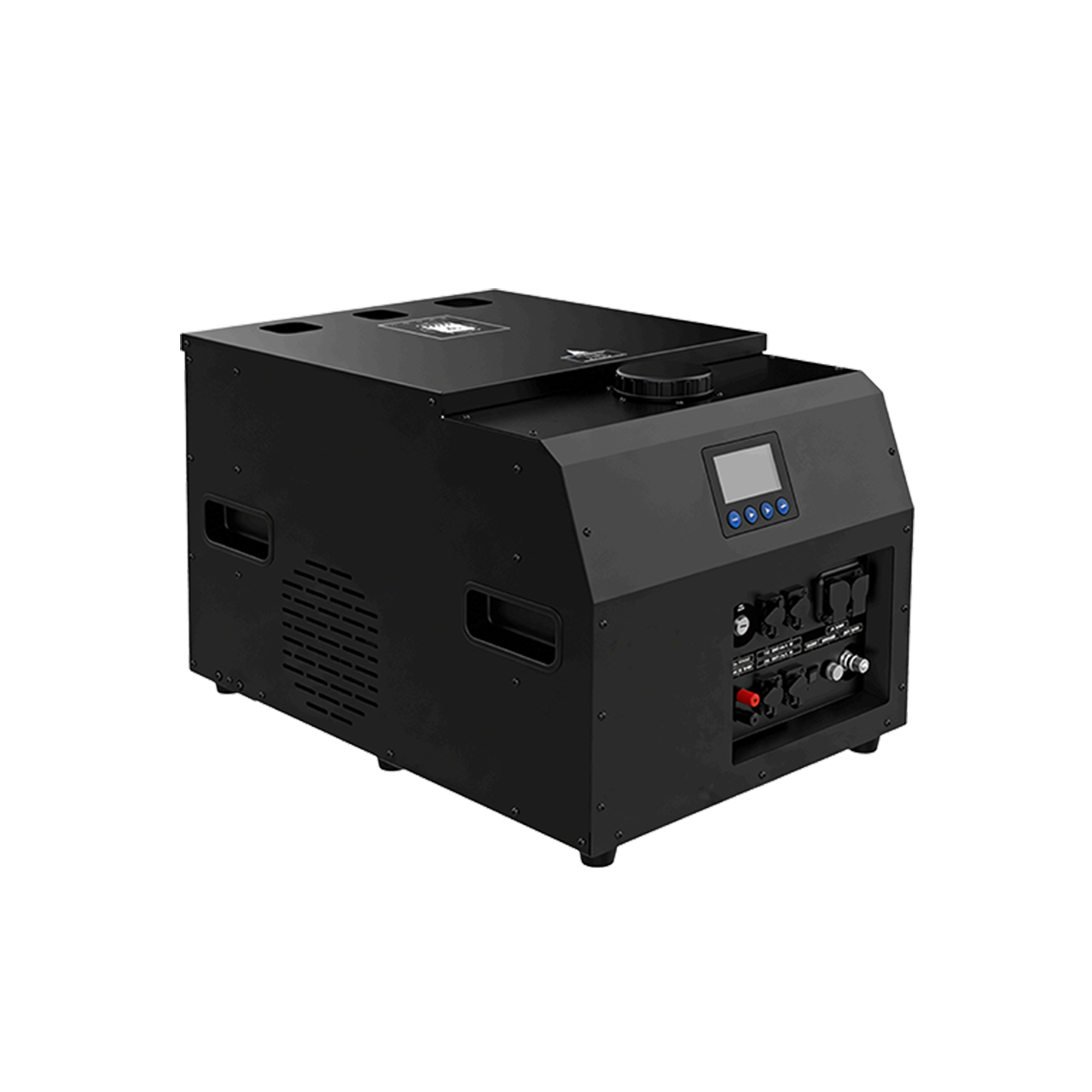

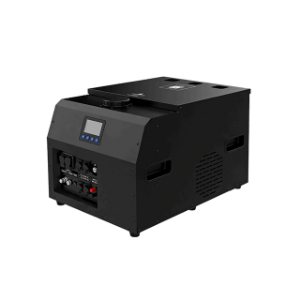

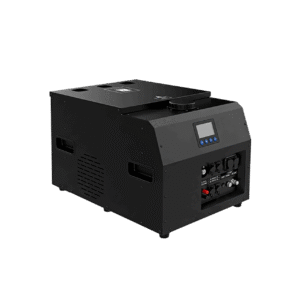

Hontim Flame Machine

SF-3V Three-head Fire machine

Model: SF-3V

220V
Voltage
1800W
Power
42kg
Weight
dmx512
DMX Control

Product Description

Three‑head Fire Machine — Multi‑Angle Flame Effect, Rain‑Resistant Stage Flame Equipment

Engineered for large‑scale concerts, music festivals, outdoor performances and grand live‑stage events, this three‑head fire machine produces multi‑angle real‑flame visual effects. Built with 304 stainless‑steel chassis and rain‑proof structure, it adopts DMX512 professional control to deliver stable flame output for various large‑venue stage shows.

Key Features

Wide‑Range Voltage Compatibility – Voltage 100‑120V, 220‑240V, 50/60HZ, compatible with global power supply standards.
1800W Rated Power – Stable power supply ensures reliable ignition and flame performance for multiple nozzles.
Three‑Angle Spraying – 3‑angle adjustable spraying direction for flexible flame arrangement.
Flame Height – Spray height reaches 8‑10M under wind‑free conditions.
DMX512 Control – Professional DMX512 signal control for easy integration with stage lighting control systems.
Large‑Capacity Oil Tank – 25L oil tank supports long‑time continuous performance.
Oil Consumption – 60ml per second for each nozzle.
Special Ignition Interface – Equipped with dedicated ignition data interface.
Durable Chassis Material – 304 stainless‑steel chassis, good corrosion resistance and long service life.
Special Consumables – Matched with biological flame oil.
Touch‑Screen Operation – LCD touchscreen display for convenient parameter setting and status checking.
Rain‑proof Performance – Rain‑proof structure suitable for outdoor event applications.

Technical Parameters

Spray Angle
3 angles
Spray Height
8‑10M (in windless conditions)
Oil Tank Capacity
25L
Oil Consumption
60ml/second/nozzle
Data Interface
Ignition Interface
Chassis Material
304 Stainless Steel
Consumables
Biological Flame Oil
Operating Interface
LCD Touchscreen Display
Protection Rating
Rainproof

Quick Specifications

Brand Hontim
Model SF-3V
Dimensions 630×460×450mm
Voltage 220V
Power 1800W
