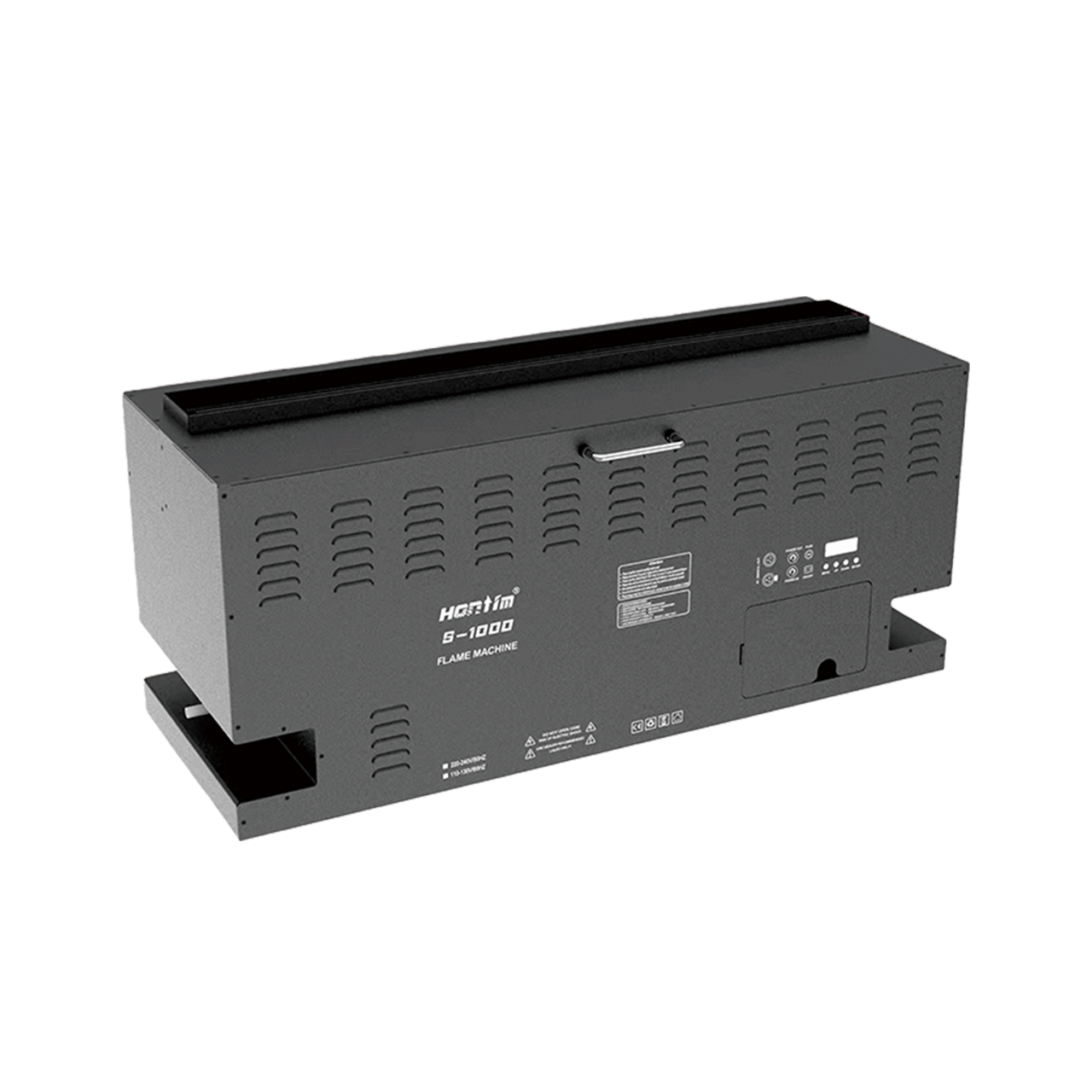

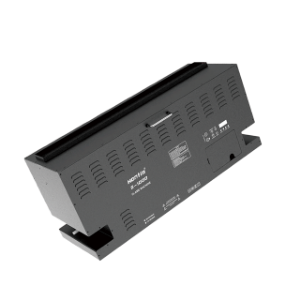

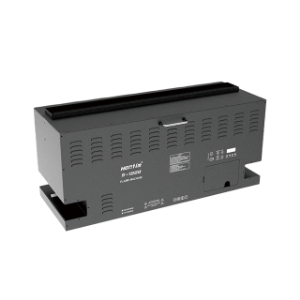

Waterproof simulated flame machine — Ultrasonic‑Atomized Simulated Flame Visual, Multi‑Mode Intelligent Control
Engineered for outdoor performances, theme‑park shows, large‑scale ceremonies and festival events, this waterproof simulated flame machine creates realistic virtual flame visuals via ultrasonic atomization combined with lighting rendering. Supporting multiple control modes, linear dimming and strobe functions, it offers safe flame‑like effect solutions for venues where open‑flame equipment is prohibited.
Key Features
Operating Voltage – AC220~240V 60HZ.
1500W Rated Power – Stable power for atomization fan and lighting system.
Large‑Volume Water Tank – 40L water capacity for long‑time continuous operation.
Fan Configuration – 3P fan assembly.
Ultrasonic Atomization Module – 10*2 sets ultrasonic atomization units.
Atomizing Spray Height – Spray height reaches 2‑3 meters.
Light‑Dyeing Height – Lighting dyeing height 1‑2 meters.
Rich Control Modes – DMX512, auto‑run, master‑slave linkage, voice‑activated and RDM control.
DMX Channel Setting – 8CH, please refer to channel table for detailed parameters.
High‑Precision Dimming – 32‑bit 0~100% linear dimming.
Versatile Lighting Functions – Color dyeing, strobe and simulated flame effect.
Wide Working Temperature Range – Operating temperature: ‑30°C ~ 50°C.
Adjustable Strobe Frequency – Strobe frequency 1‑30HZ.
Metal Housing – Black metal appearance structure.
Rich Connection Ports – DMX512 input / output, power input / output terminals.
IP45 Protection Rating – IP45 protection grade for outdoor‑site deployment.
